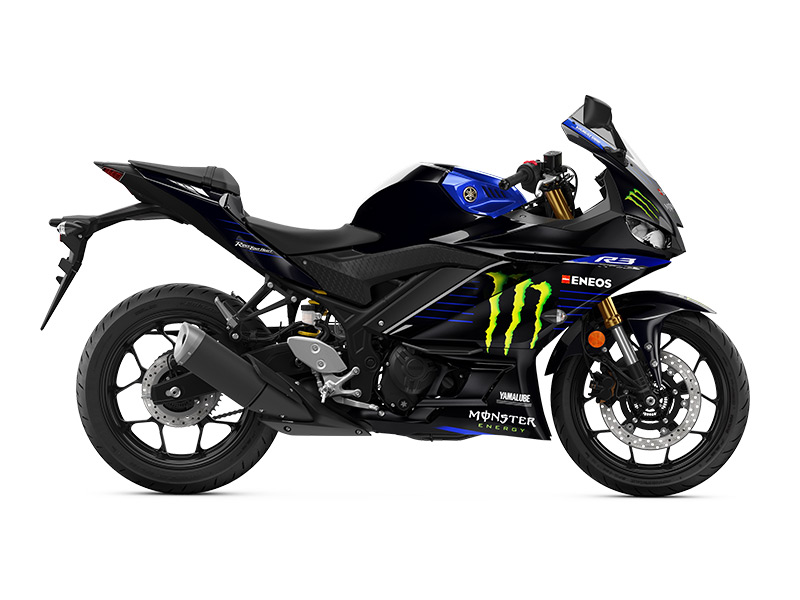

Yamaha YZF-R3SP

Description

The limited edition YZF-R3 sports an edgy, aggressive look that reflects the Monster Energy Yamaha MotoGP YZR-M1’s styling, made famous by MotoGP superstars Valentino Rossi and Maverick Viñales.

This lightweight supersport gets a whole new MotoGP-inspired look that makes it the most radical 300 on the street... or track. Its sleek new bodywork echoes Rossi’s race bike – and the aggressive new dual LED headlights underline its pure R-series DNA.

New high-specification 37mm inverted front forks offer enhanced suspension feel and feedback – while a lower fuel tank and revised handlebar position improve rider ergonomics to give you greater comfort and control.

Step up to the plate, and enter R-World.

Reference Number/VIN:
YZF-R3ASPL
Colour:
Special Edition Monster Energy Replica
Engine:
Liquid cooled, 4-stroke, DOHC, 4-valve
Drive Away:
Yes
Make:
YAMAHA
Model:
YZF-R3SP
Type:
Supersport
Condition:
New
Year:
2020

Enquiry

Features

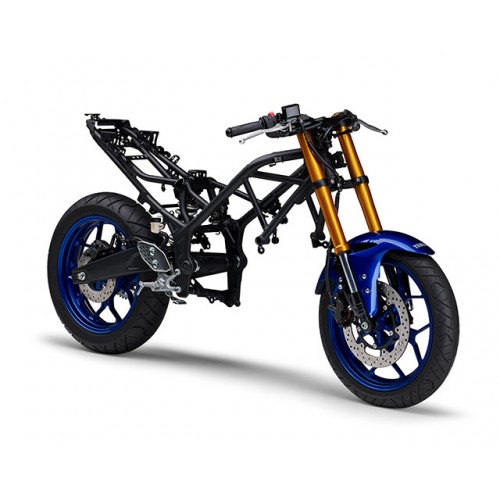

Lightweight Chassis

Lightweight Chassis

A lightweight high tensile steel tubular frame with a simple design incorporates the engine's crankcase as a stressed structural member of the chassis. The long asymmetrical swingarm design ensures the efficient transmission of engine power to the rear wheel and delivers excellent straight-line stability.

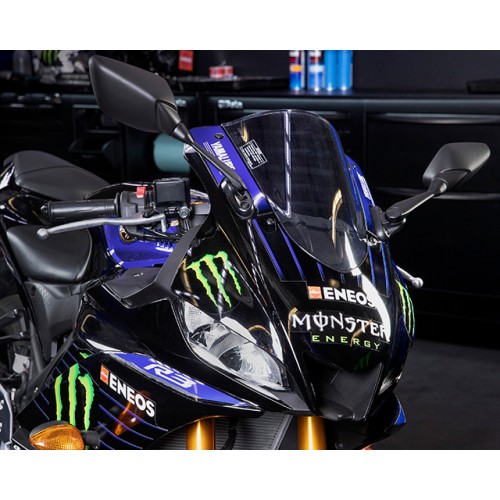

Distinctive R-Series Styling

Distinctive R-Series Styling

The YZF-R3 features a front fairing and windscreen design that pays homage to Yamaha's flagship MotoGP race bike, the YZR-M1. The aggressive new look also achieves outstanding aerodynamic performance providing an increase of up to 8km/h in top speed. The YZR-M1 style central fairing duct also functions to direct airflow to the radiator, contributing to engine cooling performance.

321cc Inline Twin Cylinder Engine

321cc Inline Twin Cylinder Engine

Featuring the latest combustion technology together with lightweight forged aluminium pistons and all-aluminium DiASil cylinders with an offset design, the smooth-running and quick-revving YZF-R3 engine produces easy-to-manage power.Featuring the latest combustion technology together with lightweight forged aluminium pistons and all-aluminium DiASil cylinders with an offset design, the smooth-running and quick-revving YZF-R3 engine produces easy-to-manage power.

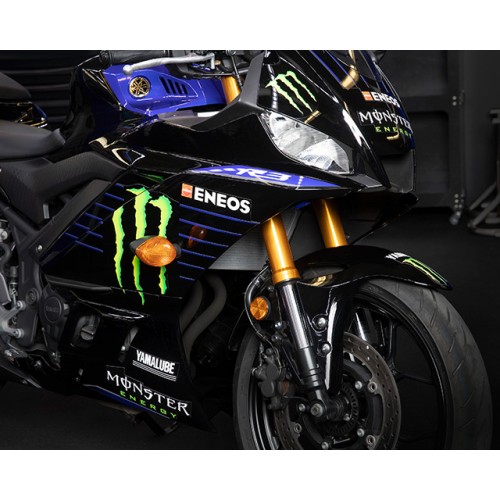

Inverted Front Forks

Inverted Front Forks

Achieving the right balance of comfort and sport riding performance for both street and track, the new KYB 37mm inverted fork features a larger surface area between the outer and inner tubes than on conventional forks. The inverted design significantly improves fork-leg rigidity, giving a sporty front-end feel and precise levels of surface feedback - while maintaining high levels of riding comfort.

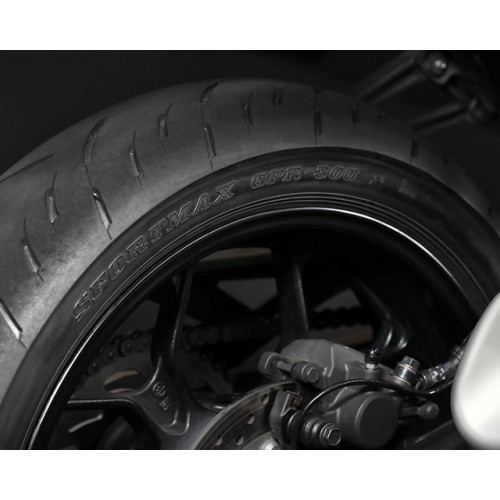

10-Spoke Cast Wheels wtih ABS

10-Spoke Cast Wheels wtih ABS

Ten-spoke cast aluminium wheels, single 298mm front brake disc with a floating twin-piston caliper, 32 degrees of handlebar steering range, a 780mm seat height and approximately 50/50 front-rear weight ensures the YZF-R3 chassis delivers agile and responsive handling. For added control, Anti-Lock Braking is fitted as standard equipment raising confidence levels even further.

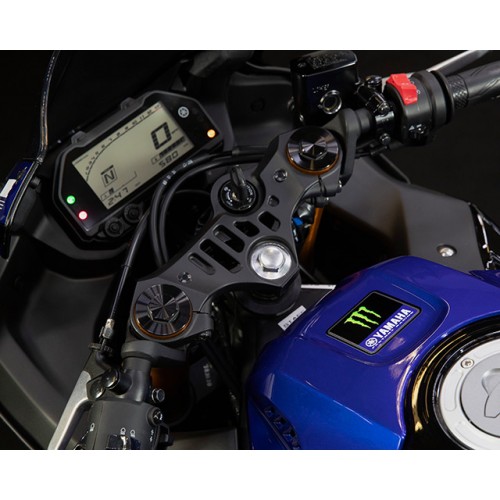

Information Rich Instrument Panel

Information Rich Instrument Panel

A trick multi-function instrument panel includes an analogue tachometer and digital speedometer – and to underline its strong R-series heritage the R3’s instruments feature a shift timing indicator lamp similar to the design used on the YZF-R1. There’s also a gear position indicator, fuel gauge, water temperature gauge as well as fuel economy information, clock, trip-meters and more. All of course wrapped into an impressive liquid-crystal-type display.

Technical Specifications


Engine

Engine Type
Liquid cooled, 4-stroke, DOHC, 4-valve
Displacement (cc)
321
Bore x Stroke (mm)
68.0 × 44.1
Compression Ratio
11.2 : 1
Lubrication System
Wet sump
Fuel Management
Fuel Injection
Ignition
TCI
Starter System
Electric
Fuel Tank Capacity (L)
14
Final Transmission
Chain
Transmission
Constant mesh 6-speed

Chassis

Frame Type
Diamond
Suspension Front
USD Telescopic forks, 130mm travel
Suspension Rear
Swingarm, 125mm travel
Brakes Front
Hydraulic single disc, 298mm - ABS
Brakes Rear
Hydraulic single disc, 220mm - ABS
Tyres Front
110/70-17M/C 54H Tubeless
Tyres Rear
140/70-17M/C 66H Tubeless

Dimensions

Length (mm)
2090
Width (mm)
730
Height (mm)
1140
Seat Height (mm)
1140
Wheelbase (mm)
1380
Ground Clearance (mm)
160
Wet Weight (kg)
167
