Yamaha YZF-R3

Description

This lightweight supersport gets a whole new MotoGP-inspired look that makes it the most radical 300 on the street... or track. Its sleek new bodywork echoes Rossi’s race bike – and the aggressive new dual LED headlights underline its pure R-series DNA.

New high-specification 37mm inverted front forks offer enhanced suspension feel and feedback – while a lower fuel tank and revised handlebar position improve rider ergonomics to give you greater comfort and control.

Step up to the plate, and enter R-World.

Price:
$7,799.00
Reference Number/VIN:
YZF-R3AL
Colour:
Yamaha Blue, Power Black, Matt Silver
Engine:
Liquid cooled, 4-stroke, DOHC, 4-valve
Drive Away:
Yes
Make:
YAMAHA
Model:
YZF-R3
Type:
Supersport
Condition:
New
Year:
2020

Enquiry

Features

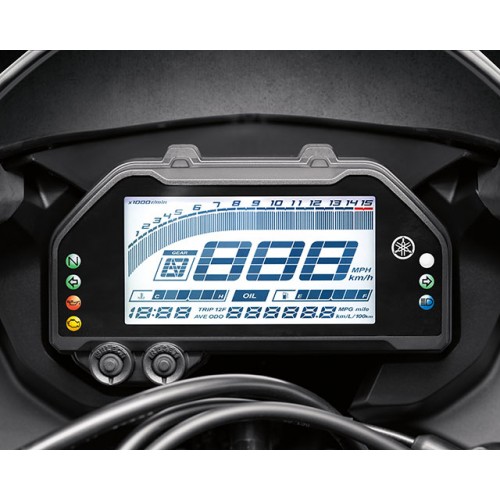

Information Rich Instrument Panel

Information Rich Instrument Panel

A trick multi-function instrument panel includes an analogue tachometer and digital speedometer – and to underline its strong R-series heritage the R3’s instruments feature a shift timing indicator lamp similar to the design used on the YZF-R1. There’s also a gear position indicator, fuel gauge, water temperature gauge as well as fuel economy information, clock, trip-meters and more. All of course wrapped into an impressive liquid-crystal-type display.

321cc Inline Twin Cylinder Engine

321cc Inline Twin Cylinder Engine

Featuring the latest combustion technology together with lightweight forged aluminium pistons and all-aluminium DiASil cylinders with an offset design, the smooth-running and quick-revving YZF-R3 engine produces easy-to-manage power.Featuring the latest combustion technology together with lightweight forged aluminium pistons and all-aluminium DiASil cylinders with an offset design, the smooth-running and quick-revving YZF-R3 engine produces easy-to-manage power.

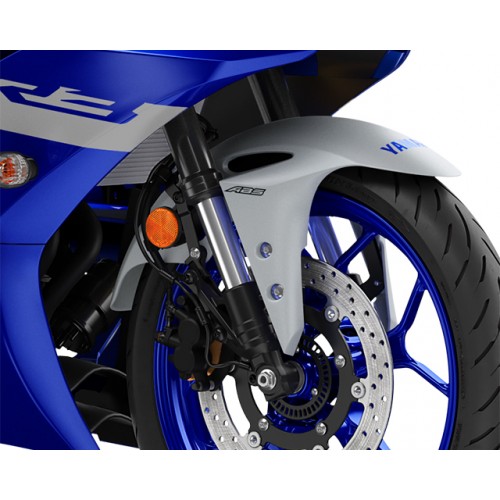

Inverted Front Forks

Inverted Front Forks

Achieving the right balance of comfort and sport riding performance for both street and track, the new KYB 37mm inverted fork features a larger surface area between the outer and inner tubes than on conventional forks. The inverted design significantly improves fork-leg rigidity, giving a sporty front-end feel and precise levels of surface feedback - while maintaining high levels of riding comfort.

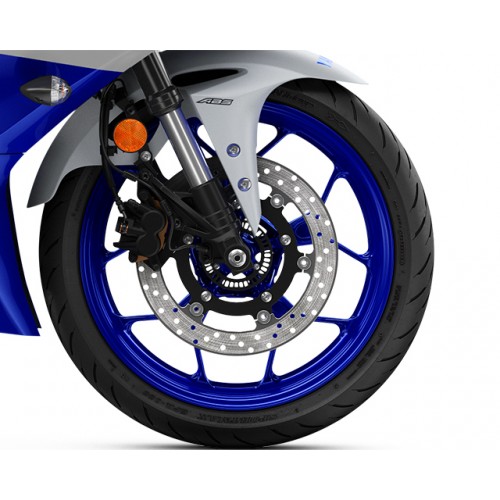

10-Spoke Cast Wheels wtih ABS

10-Spoke Cast Wheels wtih ABS

Ten-spoke cast aluminium wheels, single 298mm front brake disc with a floating twin-piston caliper, 32 degrees of handlebar steering range, a 780mm seat height and approximately 50/50 front-rear weight ensures the YZF-R3 chassis delivers agile and responsive handling. For added control, Anti-Lock Braking is fitted as standard equipment raising confidence levels even further.

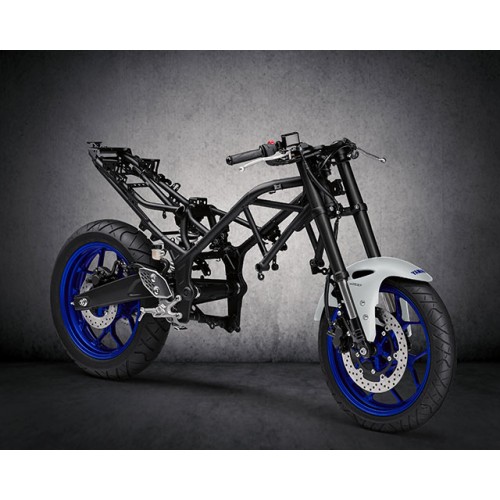

Lightweight Chassis

Lightweight Chassis

A lightweight high tensile steel tubular frame with a simple design incorporates the engine's crankcase as a stressed structural member of the chassis. The long asymmetrical swingarm design ensures the efficient transmission of engine power to the rear wheel and delivers excellent straight-line stability.

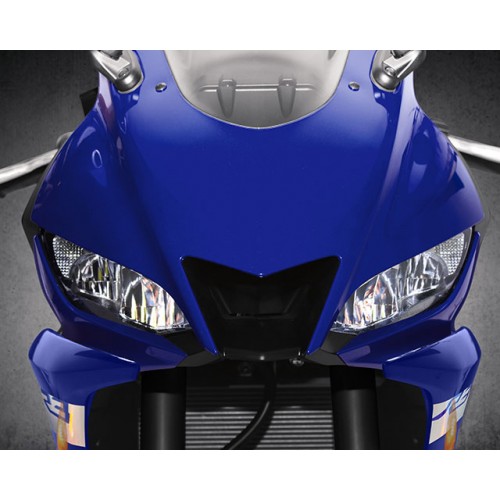

Distinctive R-Series Styling

Distinctive R-Series Styling

The YZF-R3 features a front fairing and windscreen design that pays homage to Yamaha's flagship MotoGP race bike, the YZR-M1. The aggressive new look also achieves outstanding aerodynamic performance providing an increase of up to 8km/h in top speed. The YZR-M1 style central fairing duct also functions to direct airflow to the radiator, contributing to engine cooling performance.

Technical Specifications


Engine

Engine Type
Liquid cooled, 4-stroke, DOHC, 4-valve
Displacement (cc)
321
Bore x Stroke (mm)
68.0 × 44.1
Compression Ratio
11.2 : 1
Lubrication System
Wet sump
Fuel Management
Fuel Injection
Ignition
TCI
Starter System
Electric
Fuel Tank Capacity (L)
14
Final Transmission
Chain
Transmission
Constant mesh 6-speed

Chassis

Frame Type
Diamond
Suspension Front
USD Telescopic forks, 130mm travel
Suspension Rear
Swingarm, 125mm travel
Brakes Front
Hydraulic single disc, 298mm - ABS
Brakes Rear
Hydraulic single disc, 220mm - ABS
Tyres Front
110/70-17M/C 54H Tubeless
Tyres Rear
140/70-17M/C 66H Tubeless

Dimensions

Length (mm)
2090
Width (mm)
730
Height (mm)
1140
Seat Height (mm)
1140
Wheelbase (mm)
1380
Ground Clearance (mm)
160
Wet Weight (kg)
167
